Agricultural & Poultry Systems

Key Features Of Our PLC Lighting Control Panels:

  • Real-Time, Age-Based Lighting Profiles Lighting patterns automatically follow the age of the flock with fully adjustable curves.

  • Independent Sunrise & Sunset Ramping Separate ramp-up and ramp-down times for each lighting channel or zone.

  • Multi-Zone & Split Shed Control

  • Manual Override with automatic return to programmed levels.

  • Lux Sensor Integration (Optional) Automatic light level regulation to maintain consistent illumination throughout the day.

  • PLC-Based Logic & Automation Industrial PLC control allows advanced logic, timing, alarms, and conditional responses.

  • Touchscreen HMI Interface (Optional) Clear, user-friendly display for live status, adjustments, and fault indication.

  • Fully Custom Logic & Unlimited Expansion Almost any input or process can be interpreted, allowing future integration of additional equipment.

  • Industrial 0–10V Lighting Outputs & Backup Support Stable 0–10V control, wide-range power input, and UPS / battery backup capabilities.

PLC-Based Poultry Lighting & Control Systems

Our poultry control systems are PLC-driven, fully programmable solutions designed around your shed layout, flock age, and operational needs. Unlike basic lighting controllers, our systems offer true industrial automation with virtually unlimited flexibility.

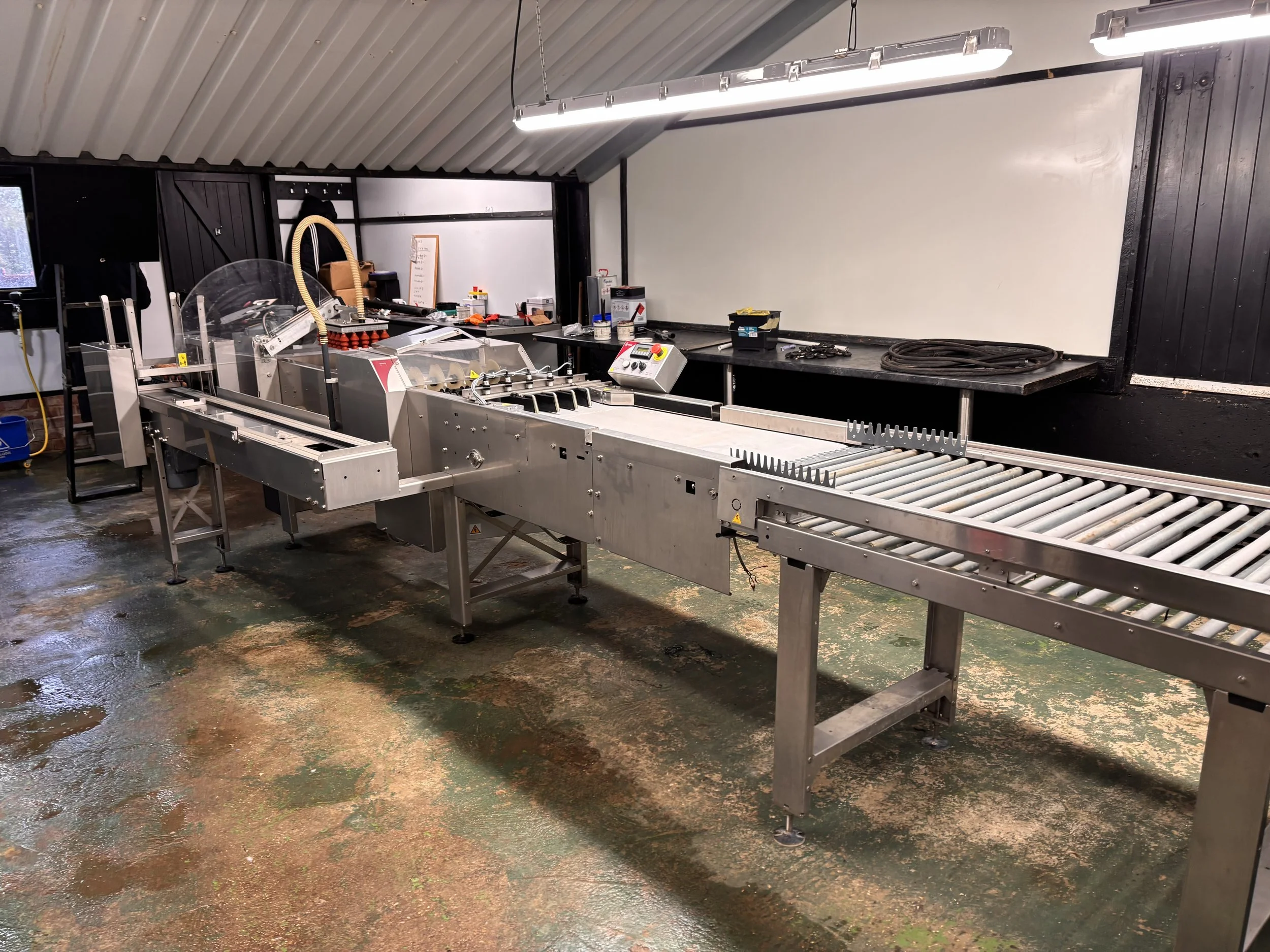

Along with our lighting control systems we also integrate new machines inline with your current set-up. Whether its new egg belts, roller tables, transfer conveyors/vacuum cups or packing machines, we integrate these seamlessly into your existing system.

Key Features Of Our Poultry Automation Capabilities:

  • Integration of egg belts, roller tables, transfer conveyors, vacuum pick-and-place systems, elevators, graders, and packing machines

  • PLC-controlled automation for sequencing, interlocking, timing, and fault handling

  • Manual override controls for safe on-site operation, maintenance, and fault recovery

  • Inverters (VFDs) for precise motor speed control, soft starting, and synchronised conveyor operation

  • Integration of position feedback and egg back-up detection for accurate monitoring and control

  • Intelligent fault detection and alarm handling to protect equipment and reduce downtime

  • Centralised control allowing multiple machines to operate as a single coordinated system

  • Designed to integrate with existing equipment or new machinery without replacing core systems

  • Fully expandable automation platform for future machinery and process upgrades

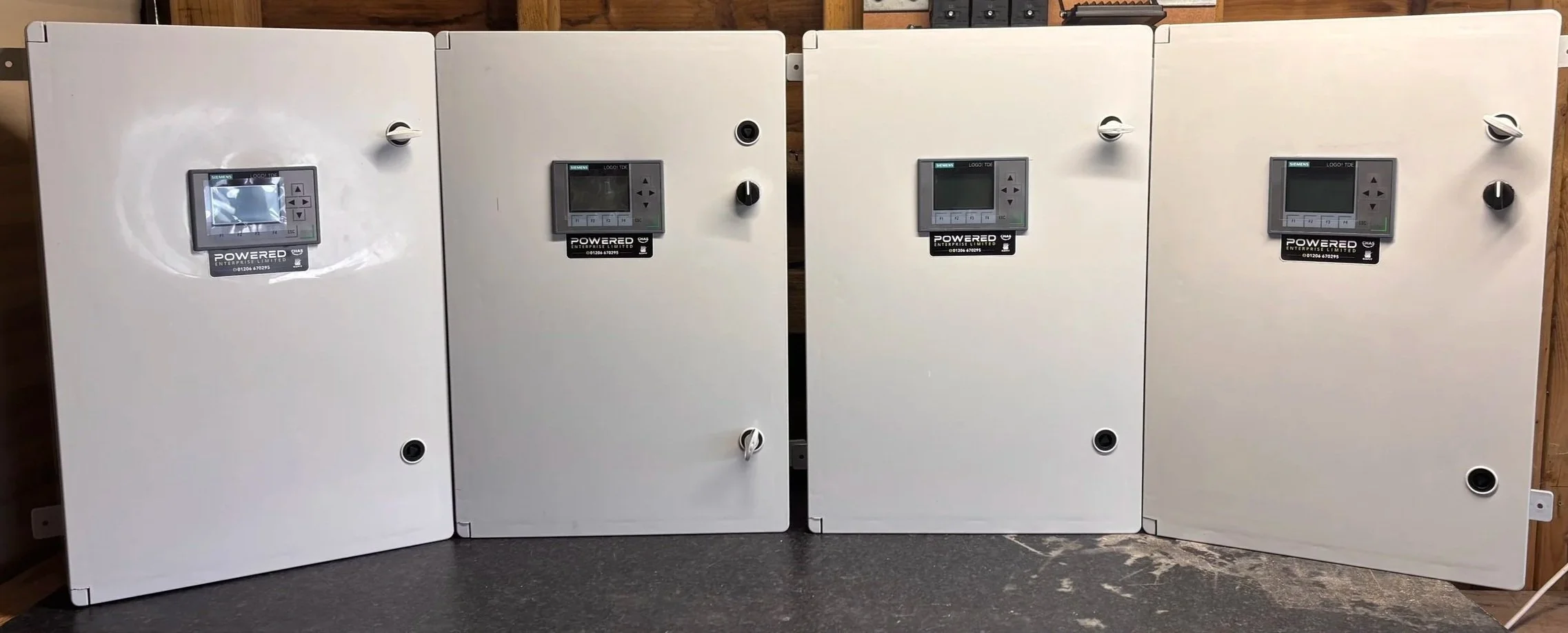

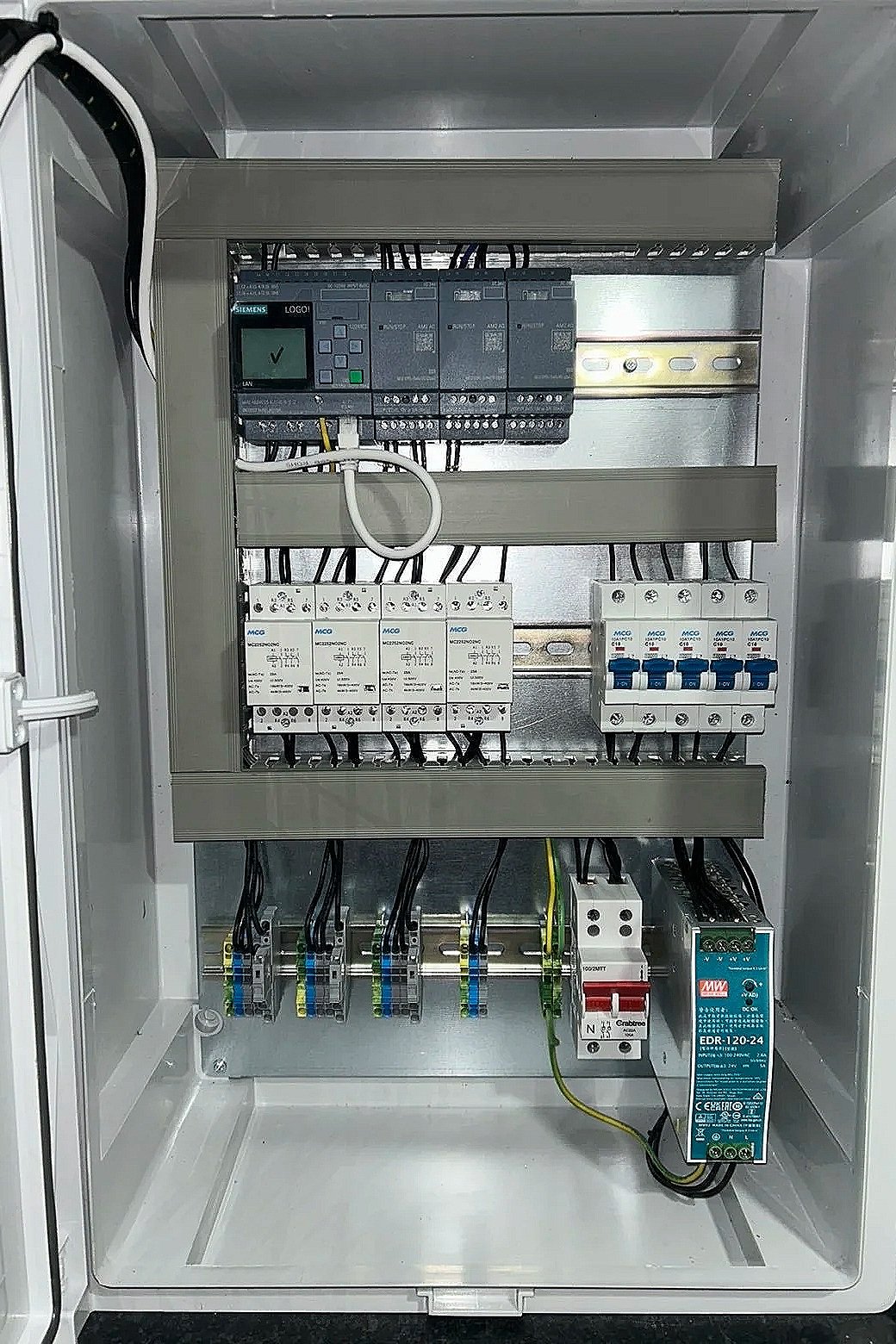

All panels are assembled, programmed and tested in-house, delivering robust, site-specific solutions built for demanding poultry environments. Please note this is also just a brief description, our panels can be as advanced, or as basic as required.

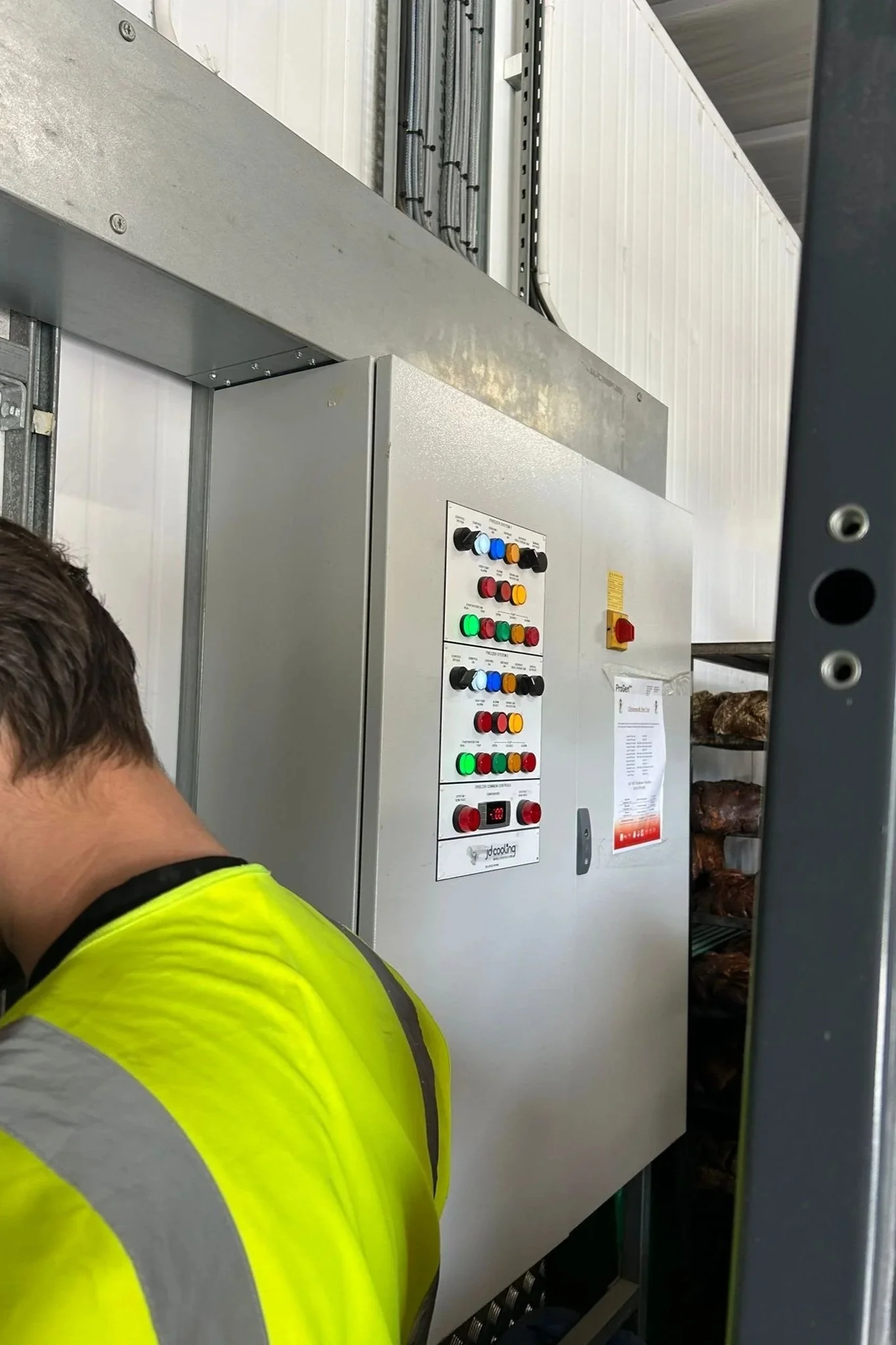

Control panels and PLC software are built and verified in-house. Final testing is completed on-site following connection to your existing system and after any required alterations to machines, conveyors or sensors.
