Control Panels

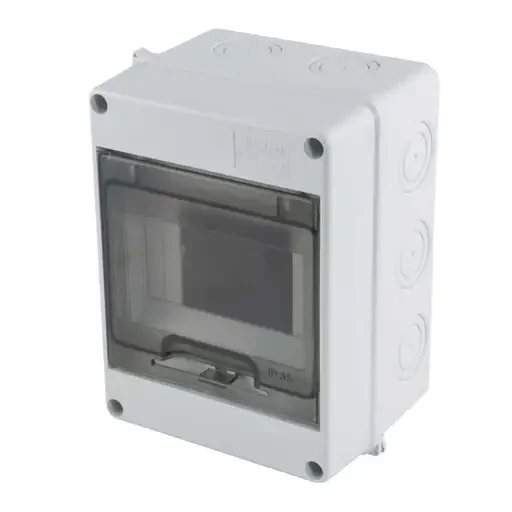

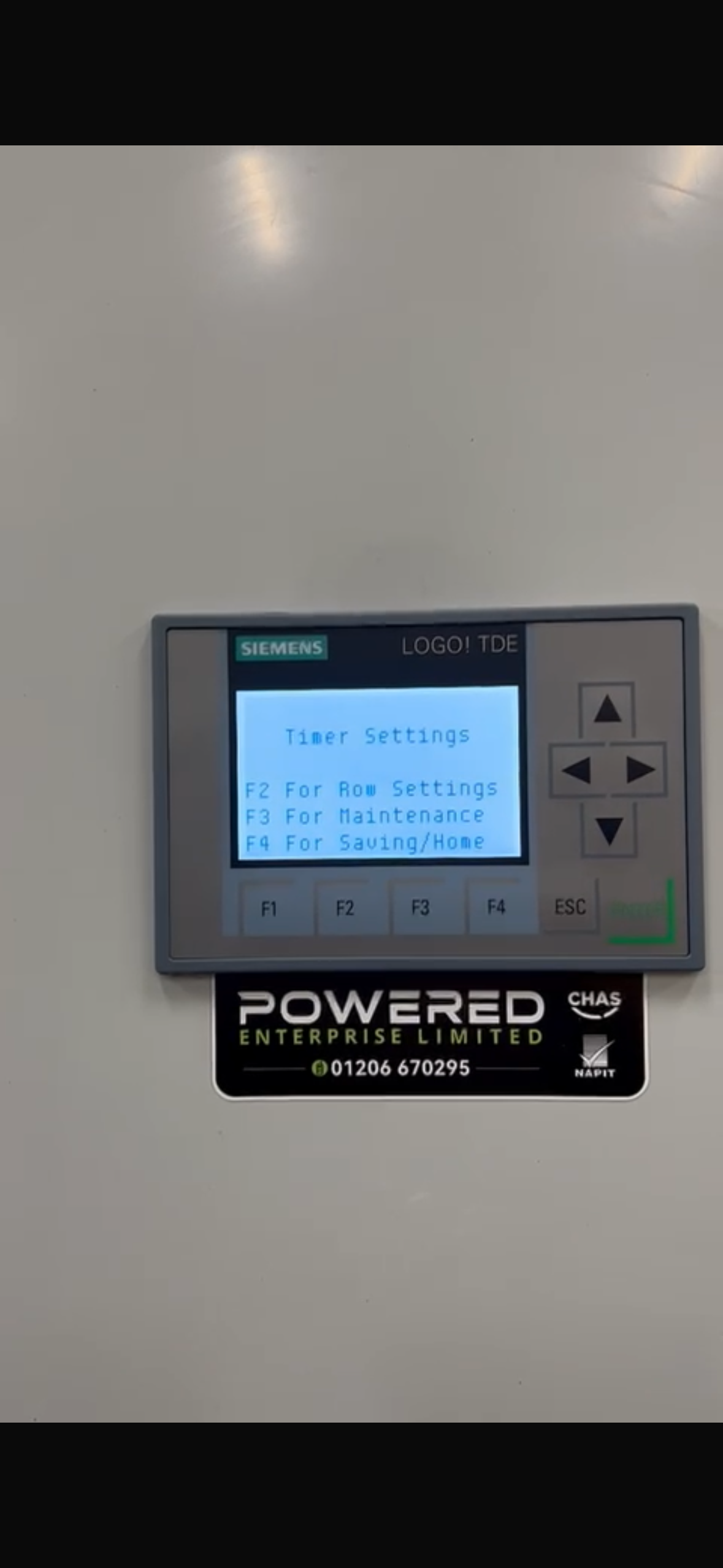

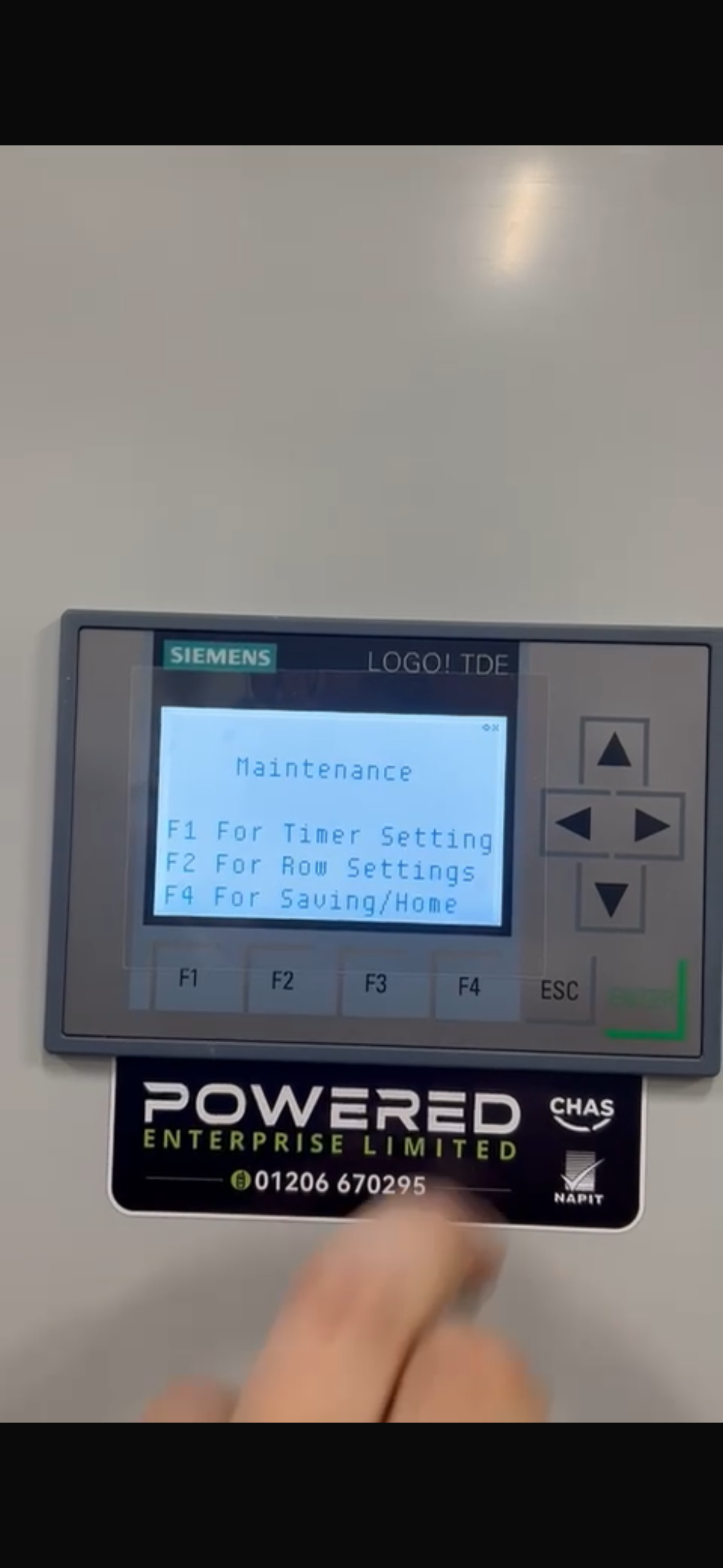

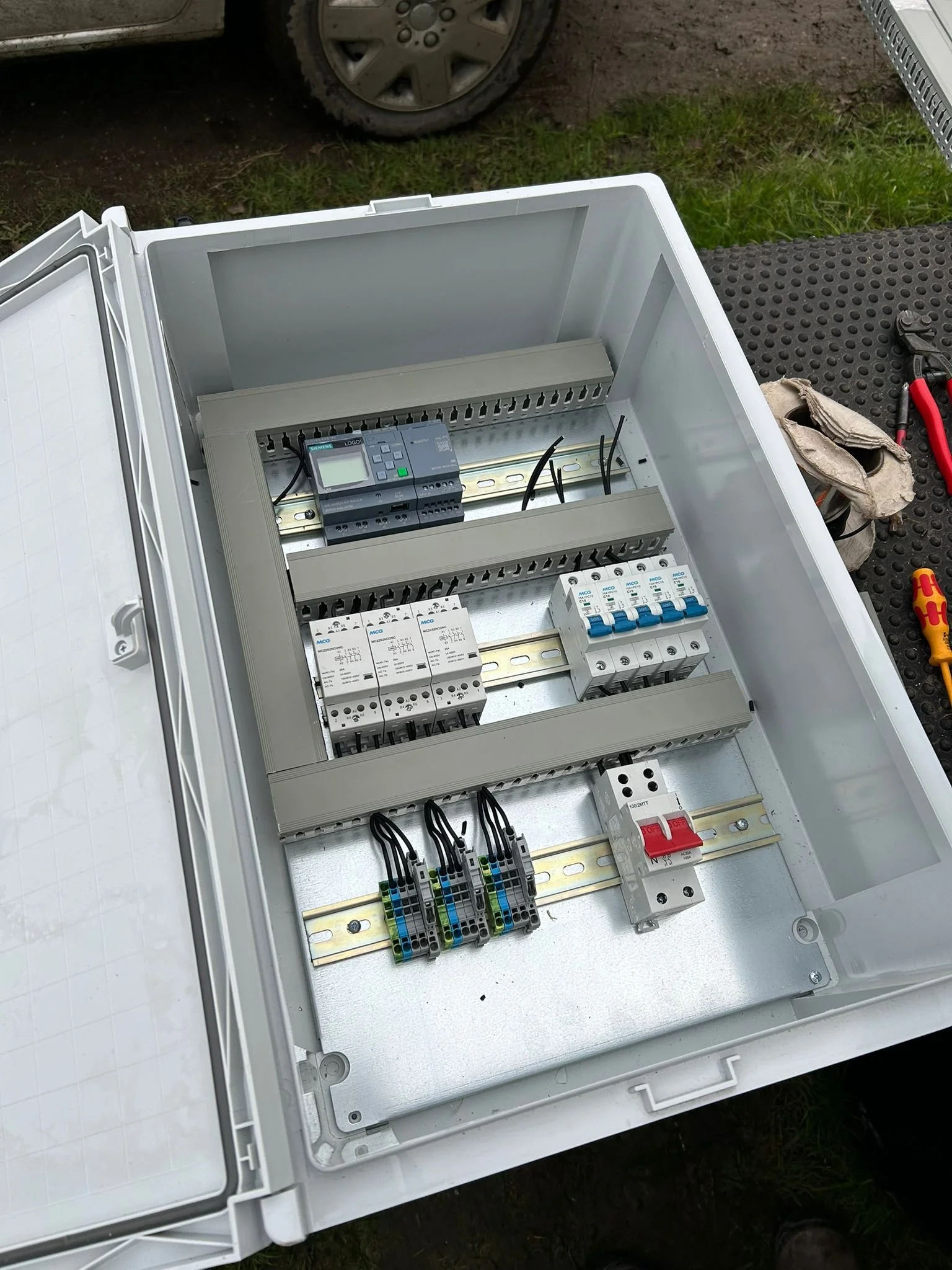

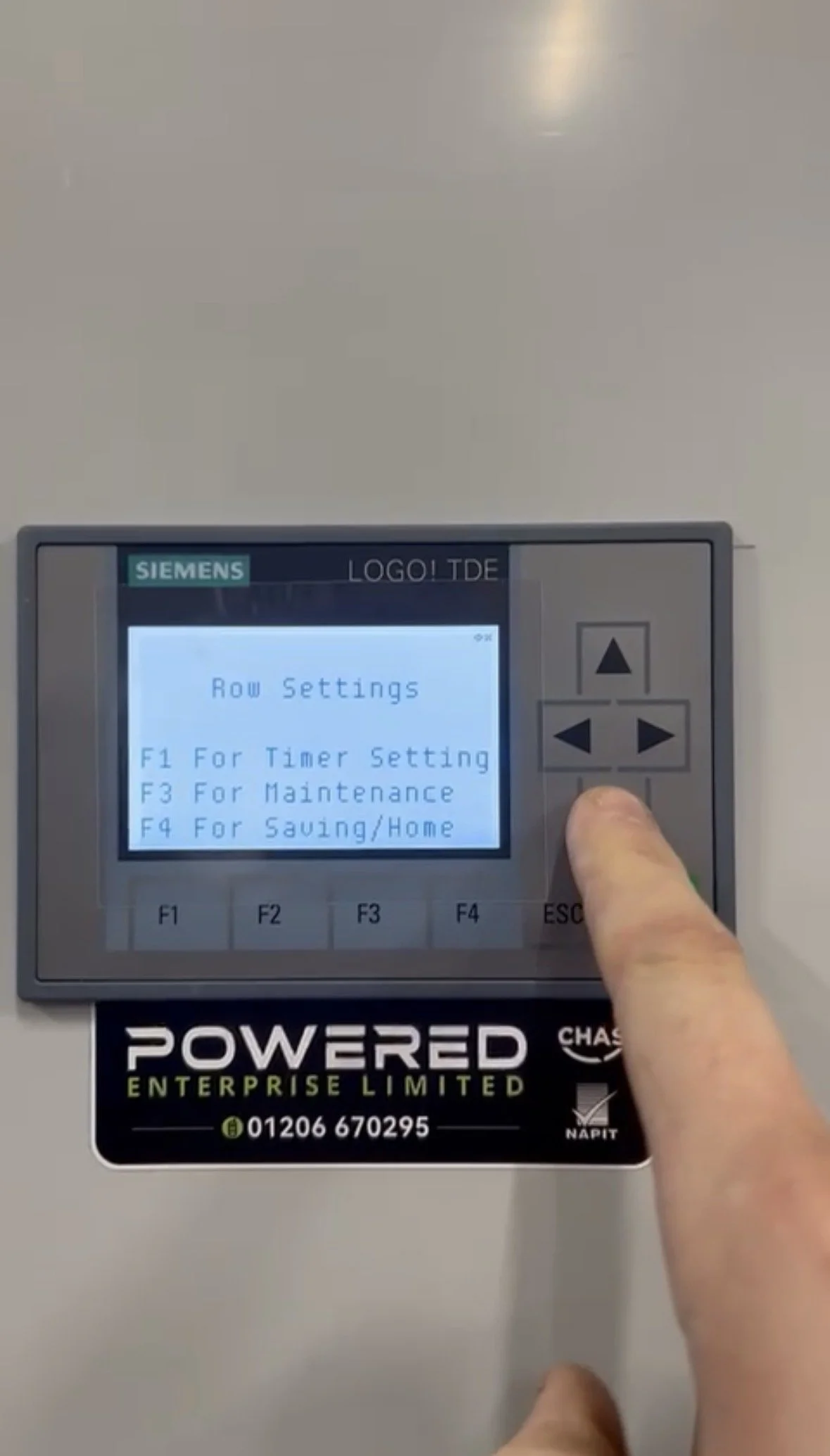

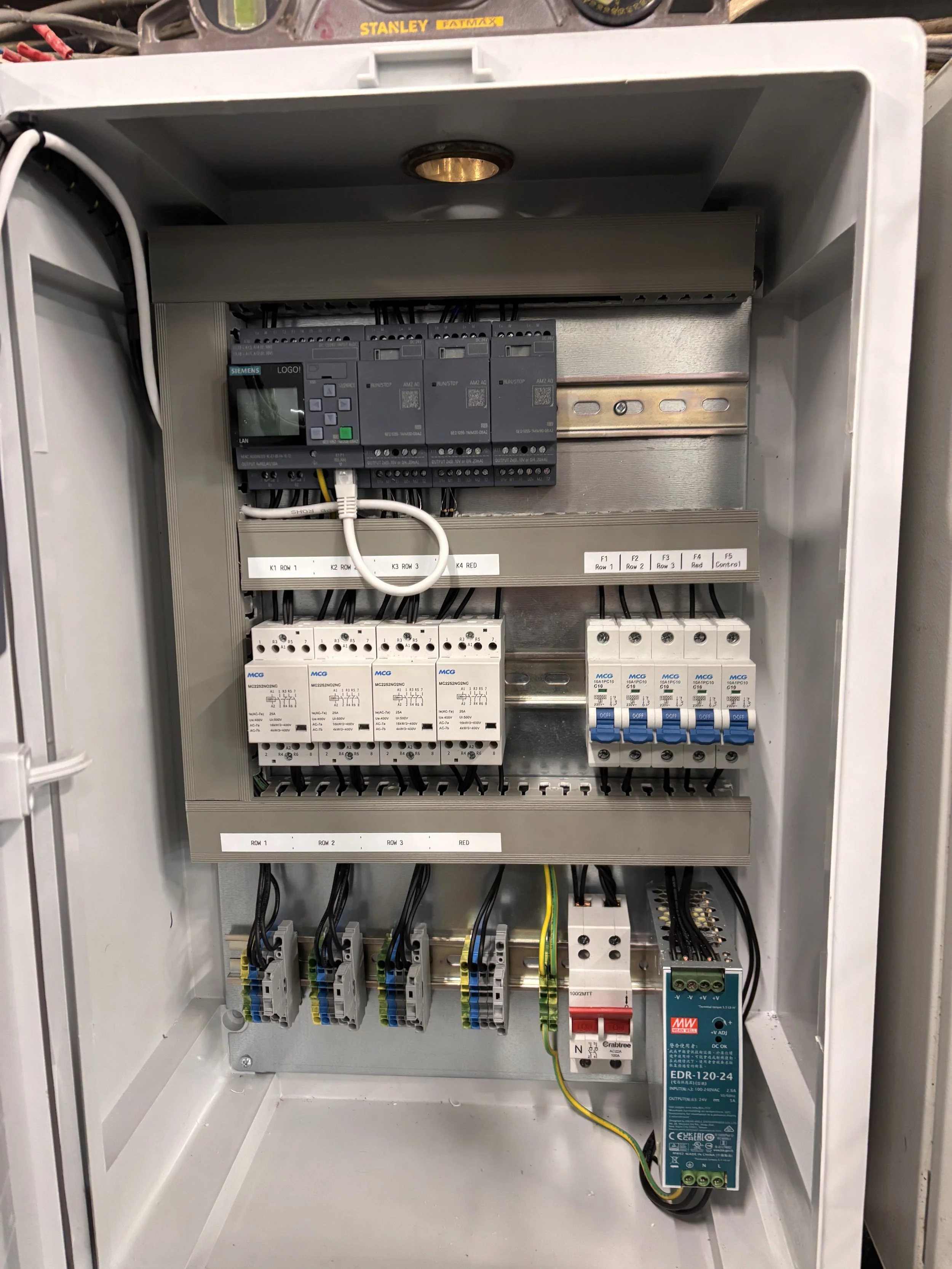

A range of pre-built panels manufactured in-house and supplied ready for installation. Our standard products include variable speed drive panels, pump panels and lighting control
A range of pre-built panels manufactured in-house and supplied ready for installation. Our standard products include variable speed drive panels, pump panels and lighting control

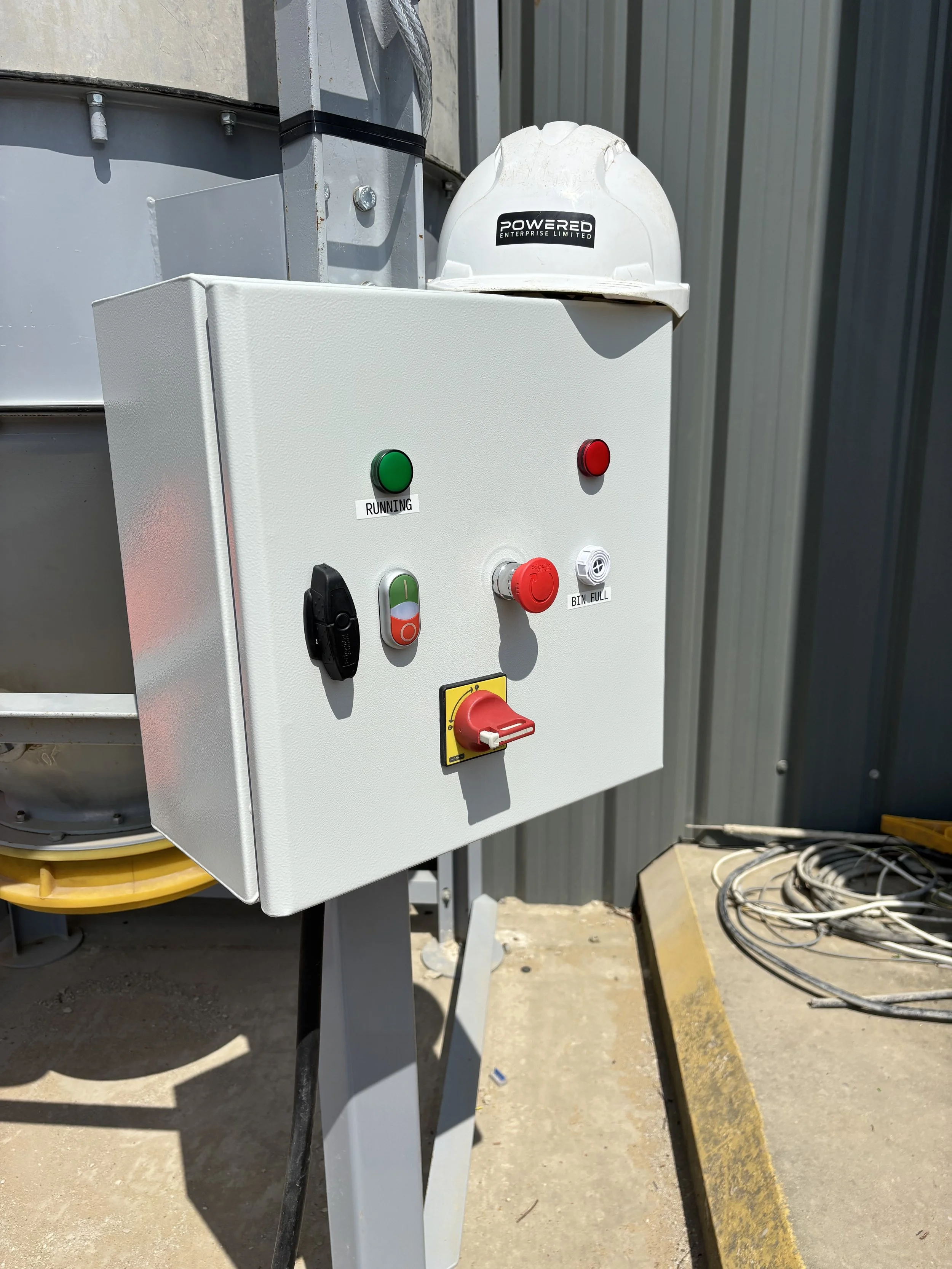

Typical applications include single pump installations such as sump pumps, transfer pumps, booster pumps and similar pumping applications where reliable control and soft starting is required.
Built and supplied fully assembled, wired and tested.
Panel includes:
Housed in an IP65-rated enclosure (400mm x 300mm x 200mm)
RS 2.2kW inverter drive
Front-mounted running lamp
Front-mounted emergency stop button (hardwired stop circuit)
Front-mounted lockable isolator (32A)
Front-mounted auto/manual selector switch
MCB protection for inverter supply (C25)
Two float switches supplied and wired for automatic pump control
Internal panel trunking and labelled wiring
230V single-phase mains input
230V three-phase inverter output
Control & Operation
The panel is configured for automatic pump operation via float control, with floats wired into the inverter control circuit to start and stop the pump based on liquid level.
Provision is also included for manual controls and external stop/interlock circuits if required.
Terminal Arrangement
The panel is supplied with 5 outgoing DIN rail terminals. Three are provided for the pump motor connection (U, V, W).
Two control terminals pre-wired with the float/emergency stop circuit.
Motor Compatibility & Installation
The panel is configured for use with 230V three-phase pump motors wired in delta rated up to 2.2kW. Not suitable for 400V-only (star wired) motors.
This product is intended for installation and connection by competent persons only.
Pricing & VAT
Price includes VAT at the current rate, a full VAT invoice will be issued following purchase.
230V variable speed control panel for motors up to 2.2kW
Typical applications include small pumps, light-duty conveyors, ventilation fans and similar machinery where speed control is required.
Built and supplied fully assembled, wired and tested. The only connection required is mains supply into the labelled isolator and the motor connected into the labelled din rail terminals.
Panel includes:
Housed in an IP65-rated enclosure (400mm x 300mm x 200mm)
RS 1.5kW inverter drive
Front-mounted running lamp
Front-mounted emergency stop button (hardwired stop circuit)
Front-mounted dial for speed control (external potentiometer)
Front-mounted lockable isolator (32A)
MCB protection for inverter supply (C25)
Internal panel trunking and labelled wiring
230V single-phase mains input
230V three-phase inverter output
Terminal Arrangement
The panel is supplied with 5 outgoing DIN rail terminals. Three are provided for the motor connection (U, V, W).
Two additional terminals are pre-installed and factory-linked using a jumper, allowing a normally closed stop circuit (such as emergency stop or interlock) to be added on site if required.
Motor Compatibility & Installation
The panel is configured for use with 230V three-phase motors wired in delta rated between the kW listed in the title. Not suitable for 400V-only (star wired) motors.
This product is intended for installation and connection by competent persons only.
Pricing & VAT
Price includes VAT at the current rate, a full VAT invoice will be issued following purchase.

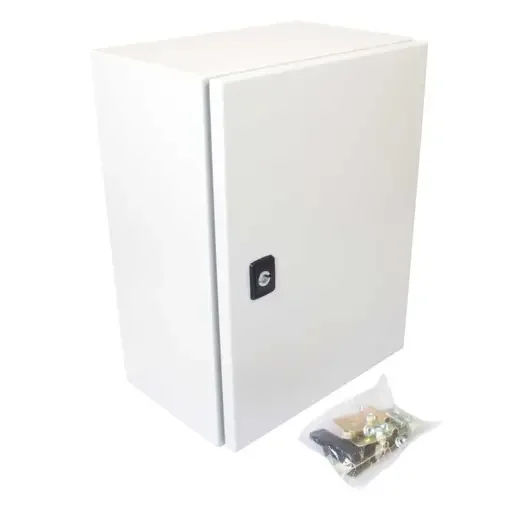

230V variable speed control panel for motors up to 1.5kW
Typical applications include small pumps, light-duty conveyors, ventilation fans and similar machinery where speed control is required.
Built and supplied fully assembled, wired and tested. The only connection required is mains supply into the labelled isolator and the motor connected into the labelled din rail terminals.
Panel includes:
Housed in an IP65-rated enclosure (400mm x 300mm x 200mm)
RS 1.5kW inverter drive
Front-mounted running lamp
Front-mounted emergency stop button (hardwired stop circuit)
Front-mounted dial for speed control (external potentiometer)
Front-mounted lockable isolator (20A)
MCB protection for inverter supply (C16)
Internal panel trunking and labelled wiring
230V single-phase mains input
230V three-phase inverter output
Terminal Arrangement
The panel is supplied with 5 outgoing DIN rail terminals. Three are provided for the motor connection (U, V, W).
Two additional terminals are pre-installed and factory-linked using a jumper, allowing a normally closed stop circuit (such as emergency stop or interlock) to be added on site if required.
Motor Compatibility & Installation
The panel is configured for use with 230V three-phase motors wired in delta rated between the kW listed in the title. Not suitable for 400V-only (star wired) motors.
This product is intended for installation and connection by competent persons only.
Pricing & VAT
Price includes VAT at the current rate, a full VAT invoice will be issued following purchase.
230V variable speed control panel for motors up to 0.75kW
Typical applications include small pumps, light-duty conveyors, ventilation fans and similar machinery where speed control is required.
Built and supplied fully assembled, wired and tested. The only connection required is mains supply into the labelled isolator and the motor connected into the labelled din rail terminals.
Panel includes:
Housed in an IP65-rated enclosure (400mm x 300mm x 200mm)
RS 0.75kW inverter drive
Front-mounted running lamp
Front-mounted emergency stop button (hardwired stop circuit)
Front-mounted dial for speed control (external potentiometer)
Front-mounted lockable isolator (20A)
MCB protection for inverter supply (C10)
Internal panel trunking and labelled wiring
230V single-phase mains input
230V three-phase inverter output
Terminal Arrangement
The panel is supplied with 5 outgoing DIN rail terminals. Three are provided for the motor connection (U, V, W).
Two additional terminals are pre-installed and factory-linked using a jumper, allowing a normally closed stop circuit (such as emergency stop or interlock) to be added on site if required.
Motor Compatibility & Installation
The panel is configured for use with 230V three-phase motors wired in delta rated between the kW listed in the title. Not suitable for 400V-only (star wired) motors.
This product is intended for installation and connection by competent persons only.
Pricing & VAT
Price includes VAT at the current rate, a full VAT invoice will be issued following purchase.
