Compact 8 channel lighting control panel designed for automatic switching of lighting circuits using a programmable logic and TDI screen for ease of operation.
Typical applications include external lighting, yard lighting. signage, plant rooms, storage areas and other installations where timed lighting control is required.
Panel includes:
Housed in an IP65 rated enclosure (300mm x 300mm x 200mm)
8 Channel programmable logic (can be pre-programmed before dispatch if comment is added)
8 Separate relays and MCBs for reliable switching and protection
DIN rail mounted components
Fully labelled internal wiring and input terminals
Photocell capability
230V single-phase mains input
230V switched lighting output
Operation
The control panel provides automatic on/off control of up to eight individual 230 V circuits, each operating independently in accordance with the programmed schedules within the Siemens LOGO! controller.
Manual override is available for each channel via the LOGO TDE display, allowing individual circuits to be switched on or off outside of the programmed times when required, without affecting the remaining channels.
Installation
Within the panel there is 2 labelled DIN rail for mains input and 8 labelled terminals for switched lighting output.
There is also a labelled link wire which can be removed and allows the integration of a photocell onto any of the lighting circuits.
This product is intended for installation and connection by competent persons only.
Pricing & VAT
Price includes VAT at the current rate. A full VAT invoice will be issued following purchase.
Please Note

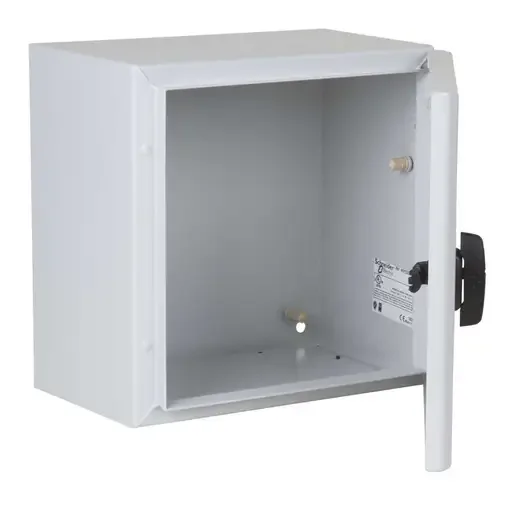

Image shows the panel to be used, not the final design.
